DESCRIPTION

Basic Info.

Model NO.	AXE3
Certification	CE
Customized	Customized
Analog Video	PAL/NTSC Optional
Communication	RS232/USB/5 Keys Optional
Digital Video	Microoled and Bt656
Resolution	384X288/320X240
Frame Rate	50/60Hz Optional
Netd	Less Than 50mk
Transport Package	Safety Export Packing
Specification	AXE3
Trademark	CONO
Origin	China
HS Code	903149
Production Capacity	50000 PCS/Year

Product Description

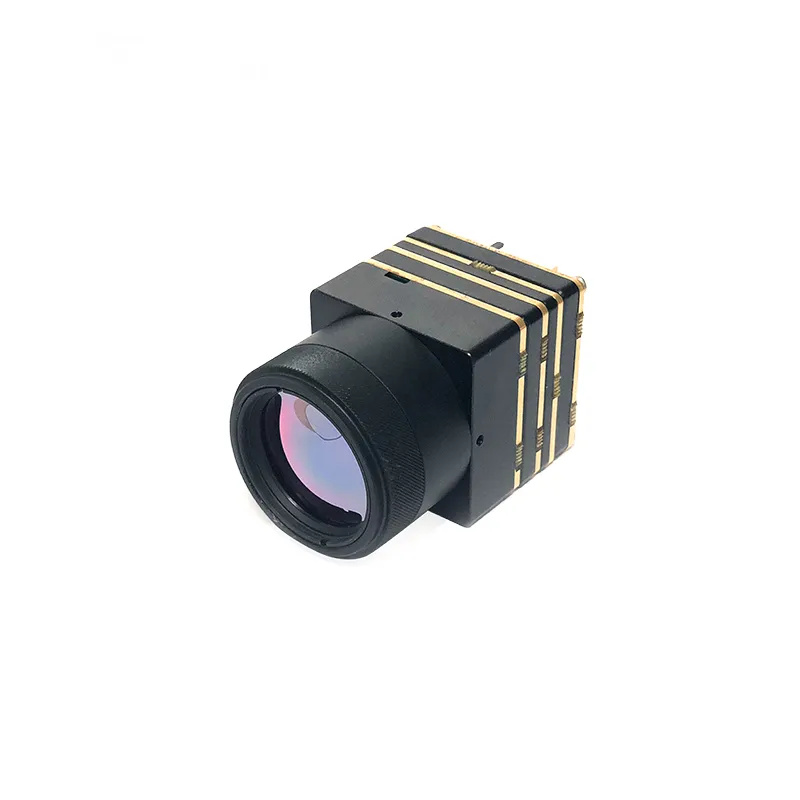

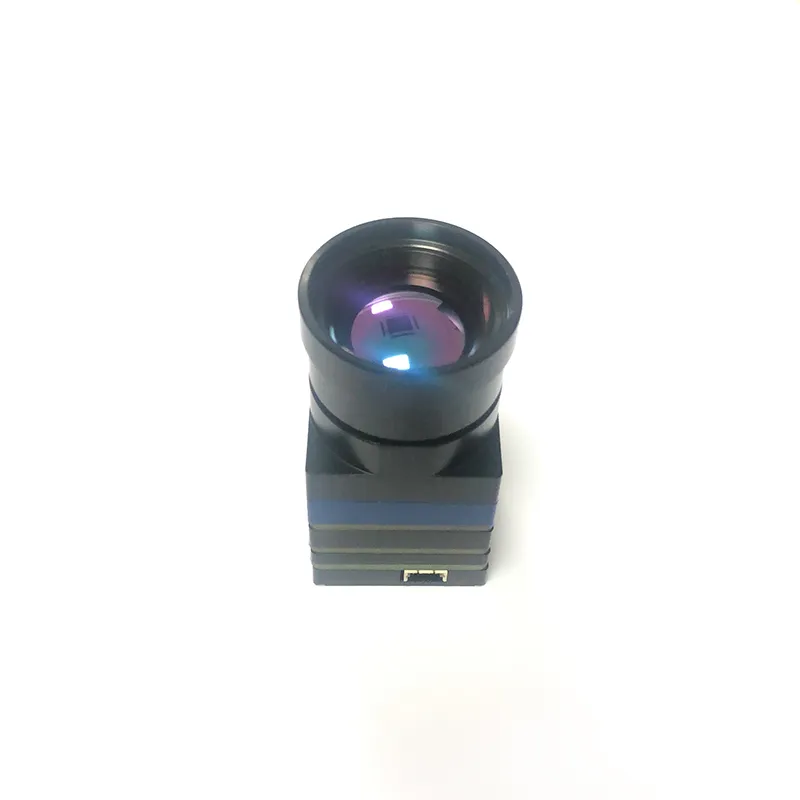

384*288 Easy Efficient Integration LWIR Micro Thermal Camera Module
The thermal imaging camera module is one of the smallest thermal imaging modules in the world, which uses the latest Gen2 384*[email protected] FPA uncooled detector. The module can offer the brilliant video quality and customized connection interface. Believe it or not, it will bring you great success in your system integration. There is a extreme power consumption and small-size (PCB: 20mmX20mm) uncooled thermal imaging core. Compact design makes it well-suited fo9r OEM assembly and integration.FEATURESSpecially designed module for rifle scope, handheld and OEM4- 12V wide power supply range to meet the power supply requirements of various battery combinationsMicro OLED interface (MDPO3BC) directly interfaces with OLED without adapter plate1024 x 768 full screen graphical menu, which can be customized and changedSupport menu interface, partition online downloadPower consumption (including OLED) is 1.2 W, and the operation time of 2 CR123 batteries exceeds 5 hoursNon-polar power supply ,can work in both positive and negative connection, which is convenient to replace the battery at nightWith digital video output function and serial port control function, and can be used to expand various equipmentWith I0 and serial port control functions, it is convenient for users to integrateULIS GEN2 detector with excellent image processing algorithm, low image noise and wide dynamic range

AXE 3 Specification
	17AU	17Mini	12AU	12Mini
Detector
Resolution	384×288		320X240
Pitch	17μm		12um
Spectral range	8-14μm		8-14μm
NETD	less than 50mk		less than 50mk
Image Processing
Frame rate	50/60Hz optional		50/60Hz optional
NUC	shutter calibration	shutterless	shutter calibration	shutterless
Digital zoom	×2,×4,PIP		×2,×4,PIP
Palette	10 optional(can be customized)		10 optional(can be customized)
Image flip	4 optional		4 optional
Start up time	less than 8 seconds	less than 10 seconds	less than 8 seconds	less than 10 seconds
Start up image	Can be customized		Can be customized
Menu and information	GUI(Can be customized)		GUI(Can be customized)
Image enhancement	DDE		DDE
Contrast and brightness	DDE		DDE
Online update	Both code and GUI resources		Both code and GUI resources
Image Presentation
Analog video	Pal/NTSC optional		Pal/NTSC optional
Digital video	Standard 0.39" MicroOled and BT656	Standard 0.39" MicroOled /BT656 optional	Standard 0.39" MicroOled and BT656	Standard 0.39" MicroOled /BT656 optional
Module Control
Communication	RS232/usb/5 keys optional	RS232 / 5 keys optional	RS232/usb/5 keys optional	RS232 / 5 keys optional
Power Supply
Required voltage	3.6-12VDC		3.6-12VDC
Power consumption	less than 1.45W including OLED		less than 1.45W including OLED
Environmental Compatibility
Operating temperature	-40ºC-60ºC		-40ºC-60ºC
Storage temperature	-45ºC-70ºC		-45ºC-70ºC
Physical Characteristics
Size	35×35×32mm	26×26×26mm	35×35×32mm	26×26×26mm
Weight	45g(without lens)	30g(without lens)	45g(without lens)	30g(without lens)

FAQQ: Are you a trading company or a manufacturer?
A: We are an ISO approved manufacturer specialized in thermal imaging devices.OEM & ODM service is available. Welcome to visit us. Q: Can we be your wholesaler or distributor?Yes, welcome. And we will offer a more reasonable price for all wholesalers, distributors, dealers, and resellers
Q: What certificate do you have?
A: We have passed CE/ROHS/ ISO9001/SGS.And have applied design patent. Q: Can I order one set for a sample to test the quality? A: Yes, We recommend checking the sample before order. Pls, contact us for a detailed price
Q: What is your MOQ?
A: To start our cooperation, one set is acceptable
Q: What are your payment terms?
A: We accept T/T bank transfer, western union, PayPal
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment
Q: How about the package?
A: Packaging, We usually use carton box for our products, we could also do any packing according to the customers' request, just please kindly let us know your idea!Q: How about delivery?
A: Usually we sent goods by DHL, UPS, TNT, and EMS for small package and by Air or by Sea for big volume
Q: Do you have a warranty?
A: Yes, we have a warranty of 24 months.
