Overview

Basic Info.

Output Signal Type	Digital Type
Production Process	SemiConductor Integrated
Material	Semiconductor Material
IP Rating	IP67
Certification	RoHS
Customized	Non-Customized
Spectral Range	3.7~4.8um
Resolution	640*512
Pixel Pitch	15um
Video Output	PAL/NTSC/Cameralink/Gige
Warranty	1 Year
Weight	9.5kg
Type	Cooled Thermal Imager Core
Cooling Time	<8m
Transport Package	Carton
Specification	107*146.5*120(mm)
Trademark	LEADIR
Origin	Shaanxi
Production Capacity	500PCS/Year

Product Description

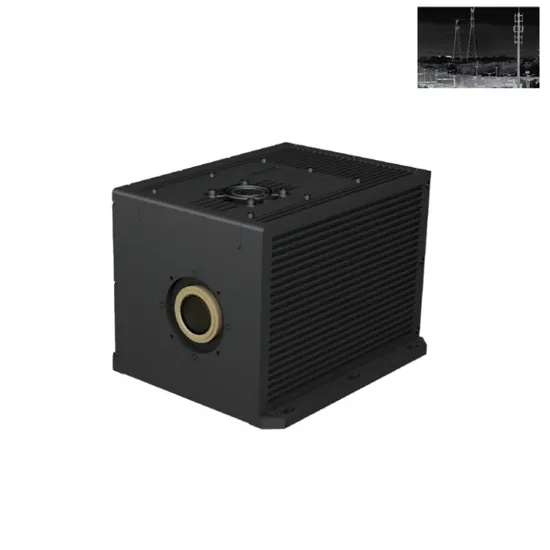

The MWIR thermal imaging core utilizes a compact, high-sensitivity MCT focal plane detector, with Stirling cooling. It features a pixel size of 15 μm and a spectral response range of 3.7 μm to 4.8 μm. The system employs adaptive non-uniformity correction technology, along with intelligent image processing algorithms such as noise filtering, enhancement, and automatic light adjustment. Key characteristics include high sensitivity, small size, modular design for easy integration, rich interfaces, high reliability, and strong expandability.

Adaptive non-uniformity correction technology; 640×512 Resolution, with frame rates up to 100 Hz; Multiple Video Outputs: PAL/NTSC/CameraLink/GigE; High Linearity, high Stability, high Repeatability, suitable for radiation characteristic measurements; Customizable: Available for wide spectral bands, high frame rates, and other specialized requirements.

The MWIR thermal imaging core can be widely used in border protection,industrial monitoring,fire prevention and early warning,surveillance and search,night vision equipment,characteristic measurement,thermal imaging and targeting,air defense monitoring,scientific research,infrared identification.

Xi'an Zhongke Lead IR-Tech Co., Ltd established in 2015, is a Research type enteprise based on intelligent electro-optical equipment and infrared thermal imaging technology, incubated by Xi'an Institute of Optics and Precision Mechanics of China Academy of Sciences. Lead IR-Tech has three core centers: Photoelectric equipment integration, precision optical processing, and specialized lens calibration. They are equipped with over 400 advanced devices, including CNC polishing machines, photoelectric, coordinate measuring machines, interferometers, and photoelectric system testing systems. This enables LEAD IR-TECH to achieve the full process of design, processing, integration, and testing of photoelectric products.

Product Description Product Feature Product Parameters

	Model Number	LD-MW640-15LEO	LD-MW640-15
	Resolution	640×512
	Pixel pitch	15μm
	F No.	4.0/5.5	2.04.0
Detector	Detector material	HgCdTe
Performance	Spectral range	3.7μm-4.8μm
	NETD	≤20mK@25ºC
	Cooler Type	Stirling cooled
	Cooling time	<8min
Environment	Operating temperature	-40ºC~+65ºC
	Storage temperature	-45ºC~+70ºC
	Shock	Aooeleration of 30g,with ahalf-sine distribution of llms
	Vibration	5-500Hz,2.73g,15min,3 axis
Physical data	Size	≤127×113×89mm	≤107×146.5×120mm
	Weight	<2kg
Interface	Input voltage	24±2V
	Power consumption	s25W @20C
